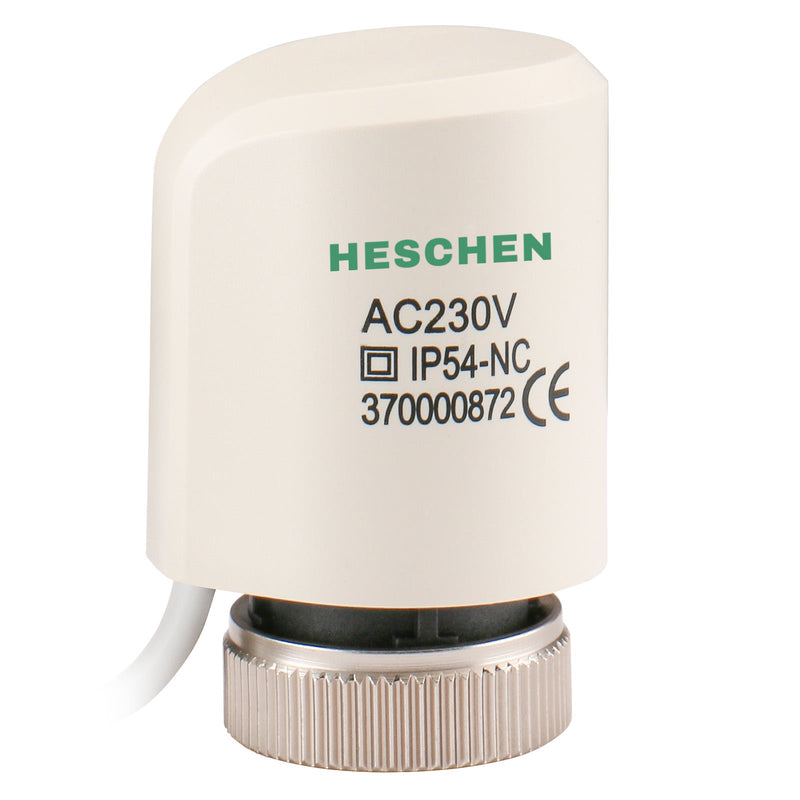

Heschen Electric Thermal Actuator WG37, 2 Wire Normaly Closed AC230V M30x1.5 for Underfloor Heating Manifolds

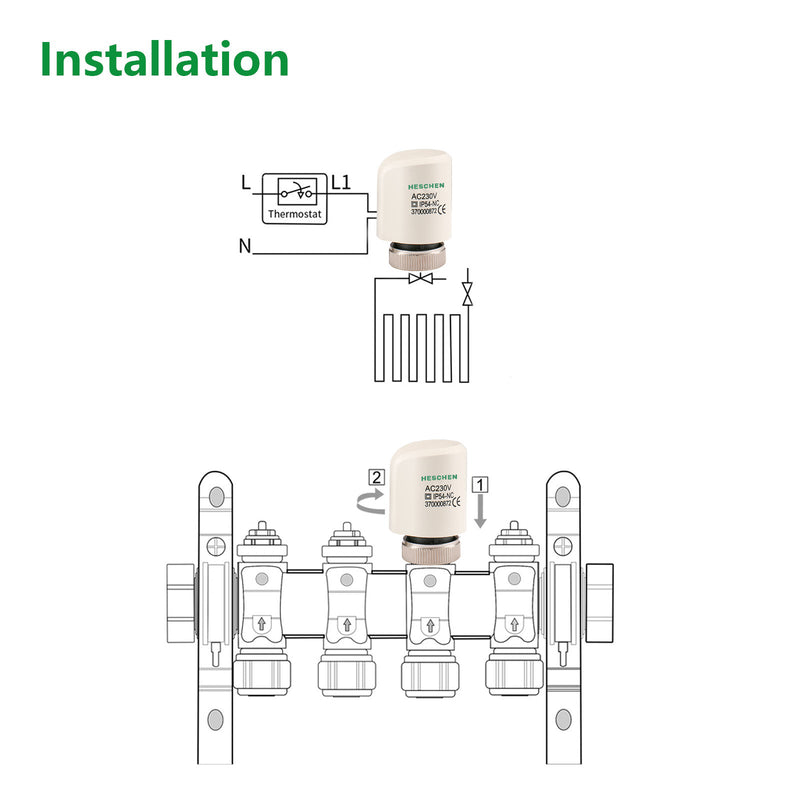

Heschen Thermoelectric Actuator is adapted to work with the central and underfloor heating system.The actuator is perfect for every household,Its task is to regulate and control hot water valves, which affects the functionality of the entire installation. The actuator opens and closes the valve on the underfloor manifold according to the signal required by the room thermostat or digital programmable thermostat.It has the characteristics of zero working noise, small size and low power consumption.

•Ambient temperature:-5-50℃
•Thrust:110N
•2 Wire Normally Closed

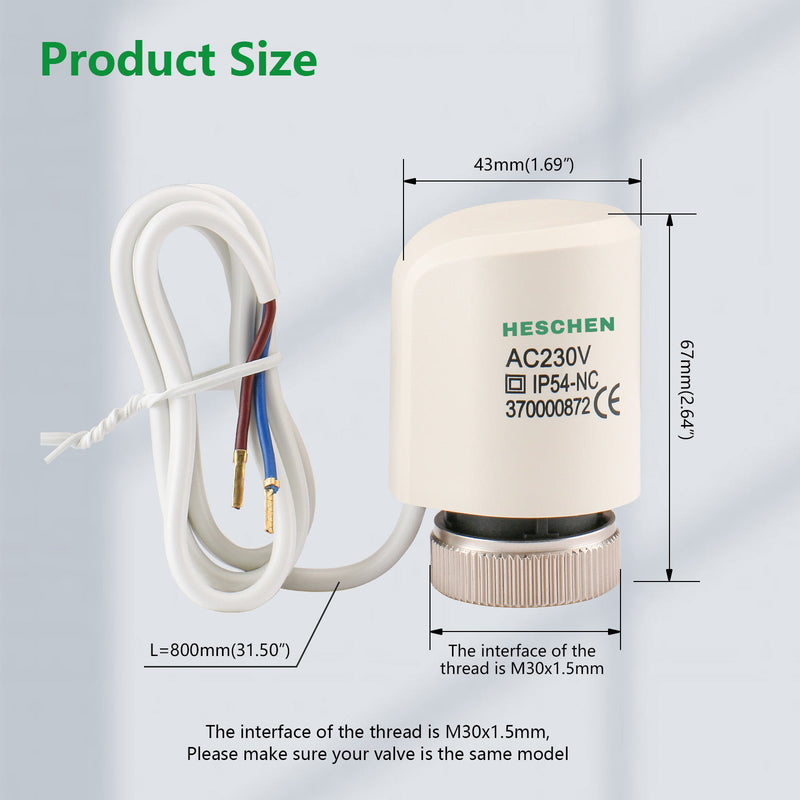

•M30 Thread:M30x1.5mm
•Stroke Lenght:Min3mm
•Voltage: AC230V/DC24V
•Stable Power Comsuption: 2W
•Full Time:180-300s
•Cable Length：800mm
•Protection Class:IP54
