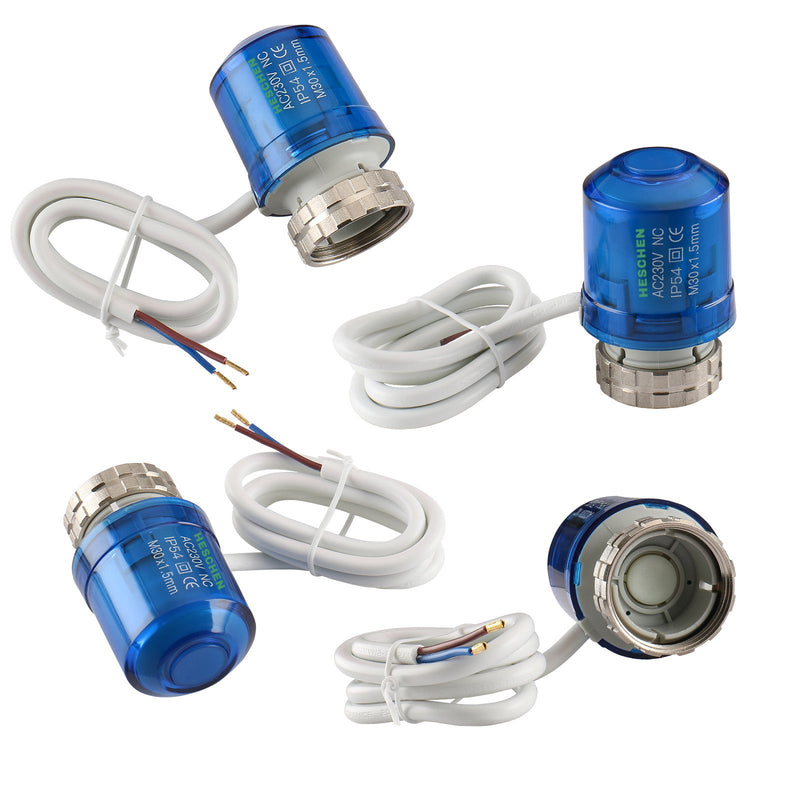

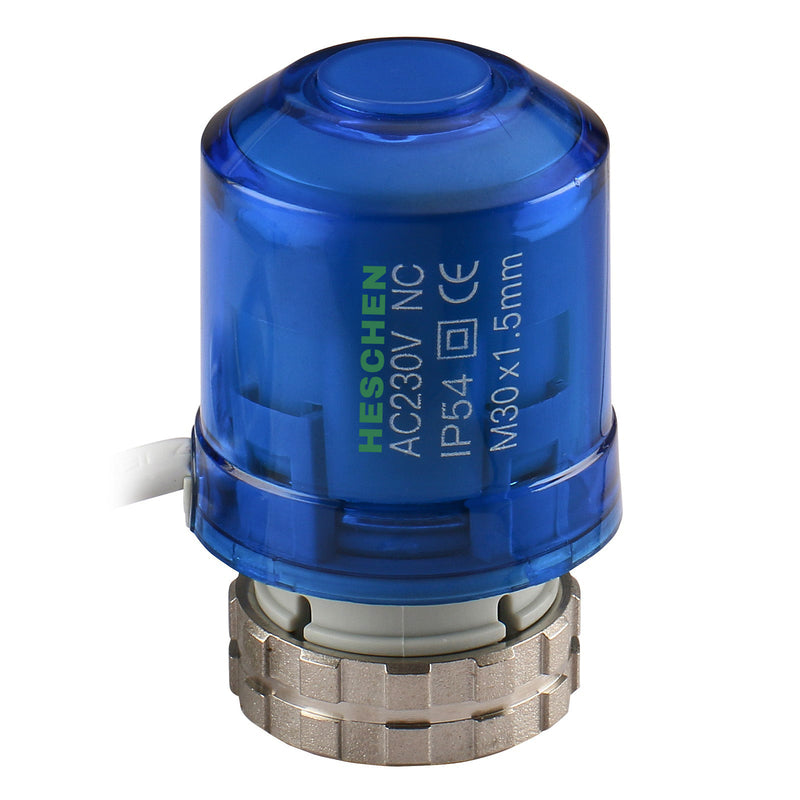

Heschen Thermal Actuator WG02,100Pack AC230V Valve on and off status with 360 degree LED Indication Normaly Closed for Underfloor Heating Blue

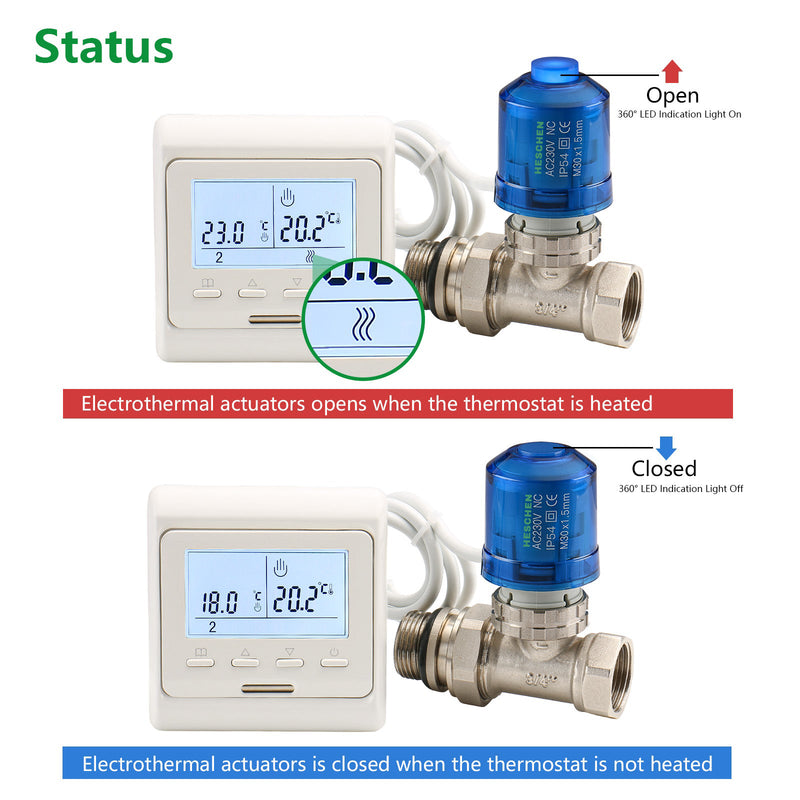

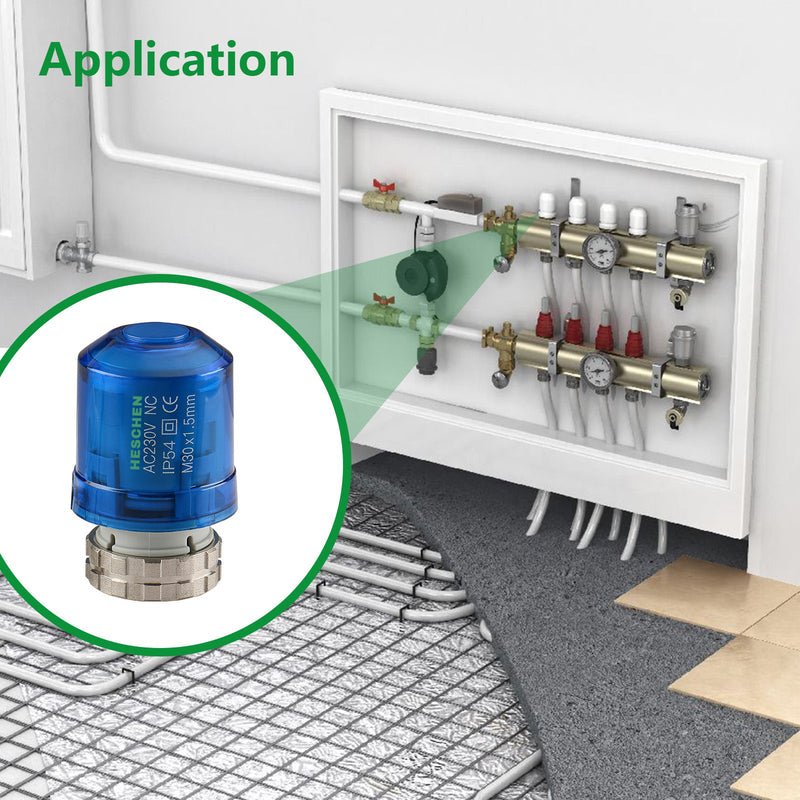

Heschen The electrothermal actuator is a driving device for controlling the flow and heat dissipation at the end of the heating equipment. It needs to be used together with a thermostat and a two-way valve.The actuator opens and closes the valve on the underfloor manifold according to the signal required by the room thermostat or digital programmable thermostat.Relying on thermal expansion and cold contraction to complete, no mechanical transmission, no component wear.

•Ambient temperature:-5-50℃
•Thrust:100N
•2 Wire Normally Closed

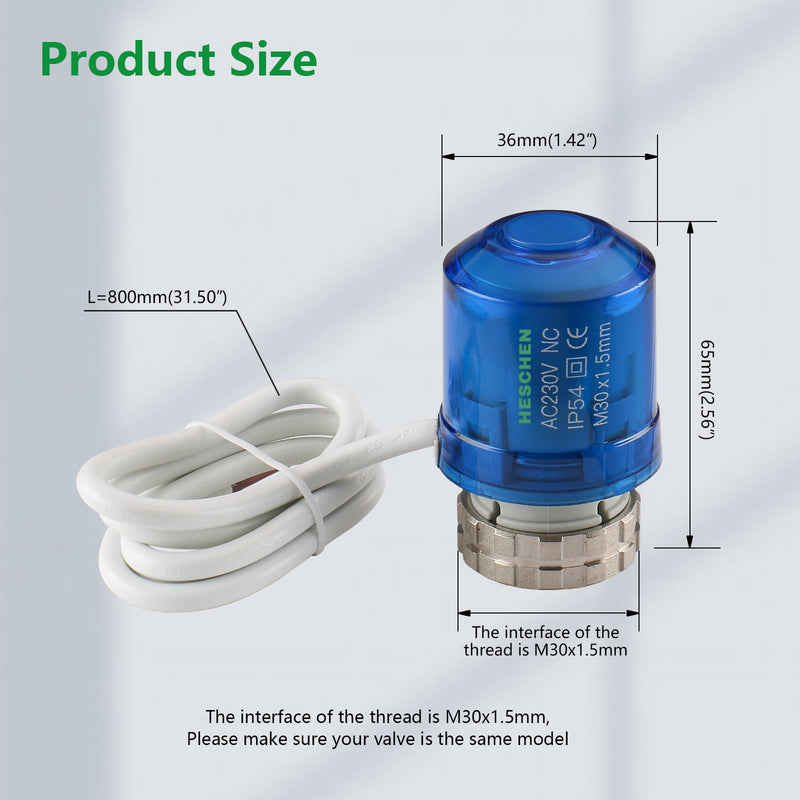

•M30 Thread:M30x1.5mm
•Stroke Lenght:3.5mm Max4.2mm
•Voltage: AC230V/DC24V
•Stable Power Comsuption: 2W
•Full Time:180-300s
•Cable Length：900mm
•Protection Class:IP54
