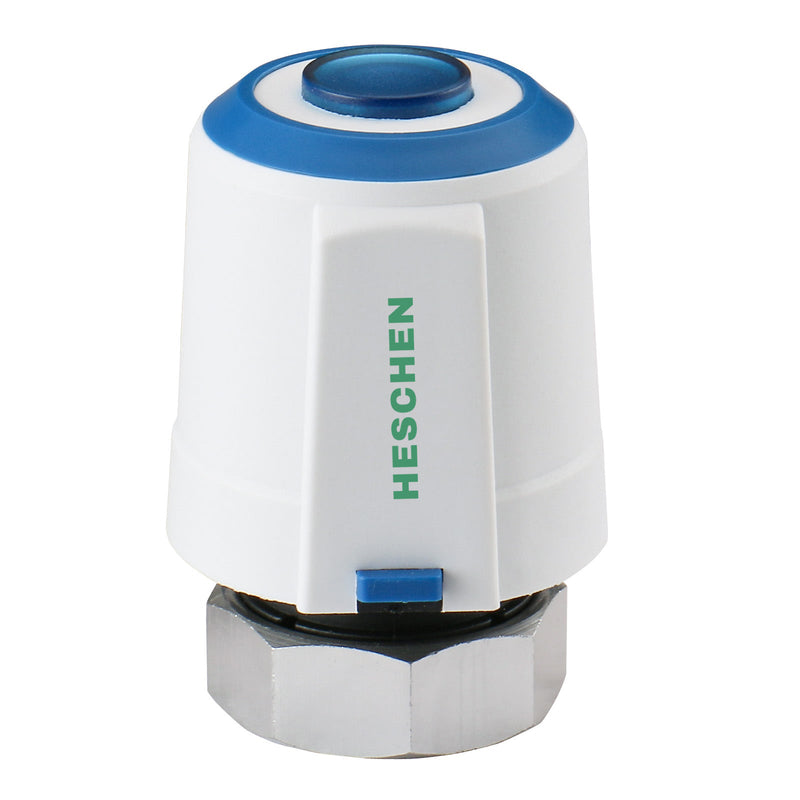

Heschen Thermal Actuator WGM05,100Pack AC230V for Floor Heating System with Room Temperature Control Normally Closed

Heschen Thermoelectric Actuator is adapted to work with the central and underfloor heating system.Perfect for Every Household and Fits most manifolds to the M30 thread.The actuator opens and closes the valve on the underfloor manifold according to the signal required by the room thermostat.When the water temperature reaches the set temperature, close the valve, adjust the temperature, and reduce energy consumption.

•Ambient Temperature:-5-50℃
•Thrust:100N
•2 Wire Normally Closed
•M30 Thread:M30x1.5mm
•Stroke Lenght:3-4mm
•Voltage: AC230V/AC24V
•Stable Power Comsuption: 2.5W
•Full Time:3min
•Cable Length：800mm
•Protection Class:IP41
