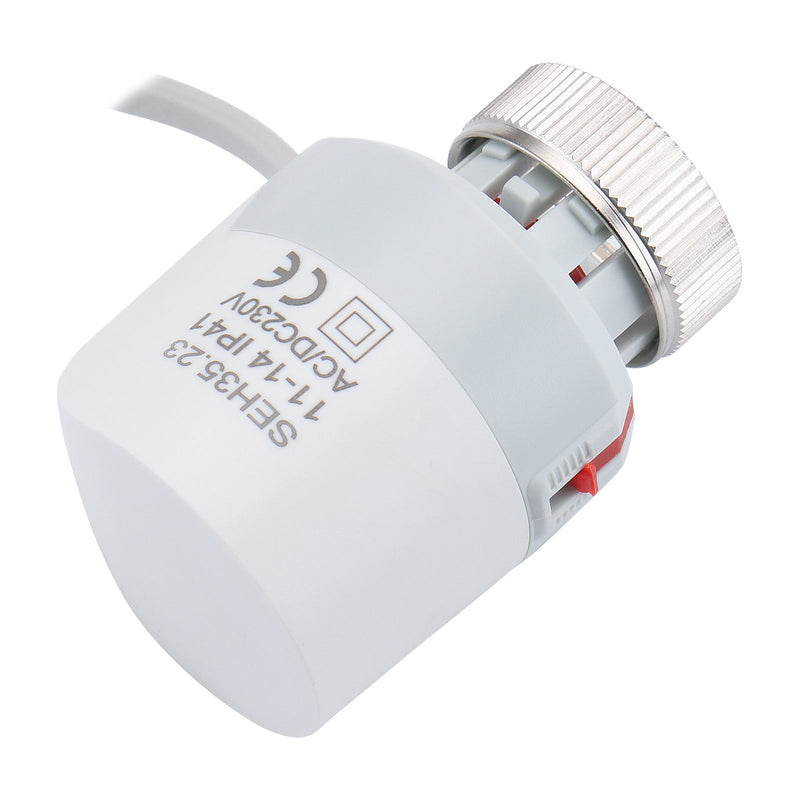

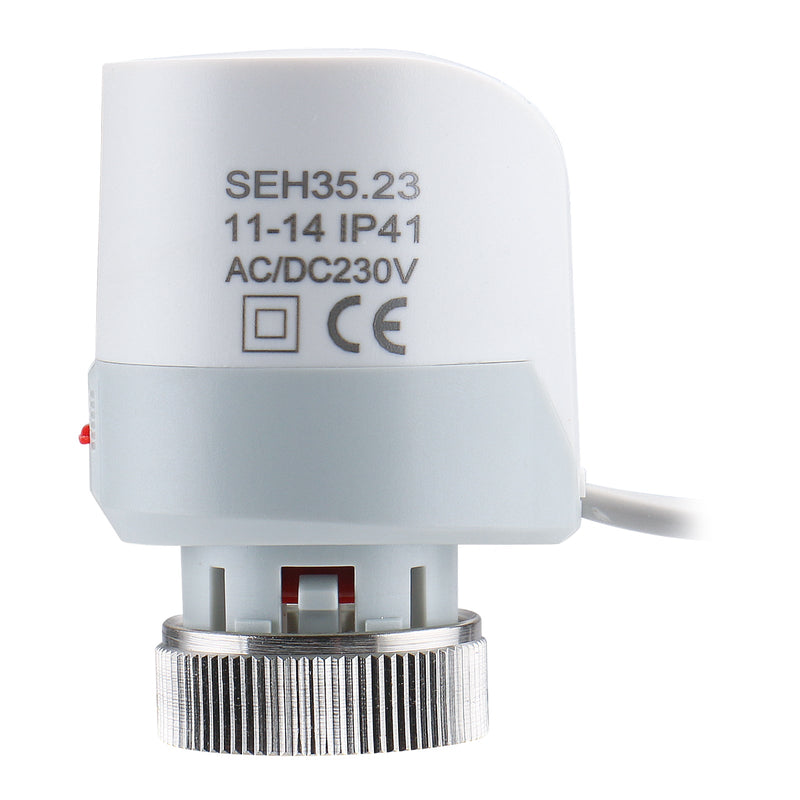

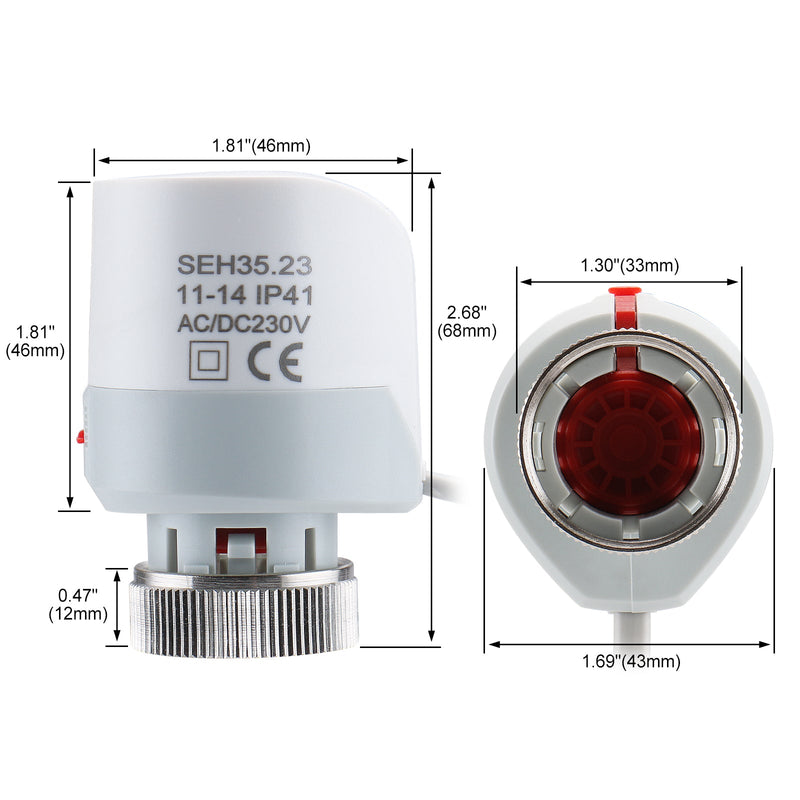

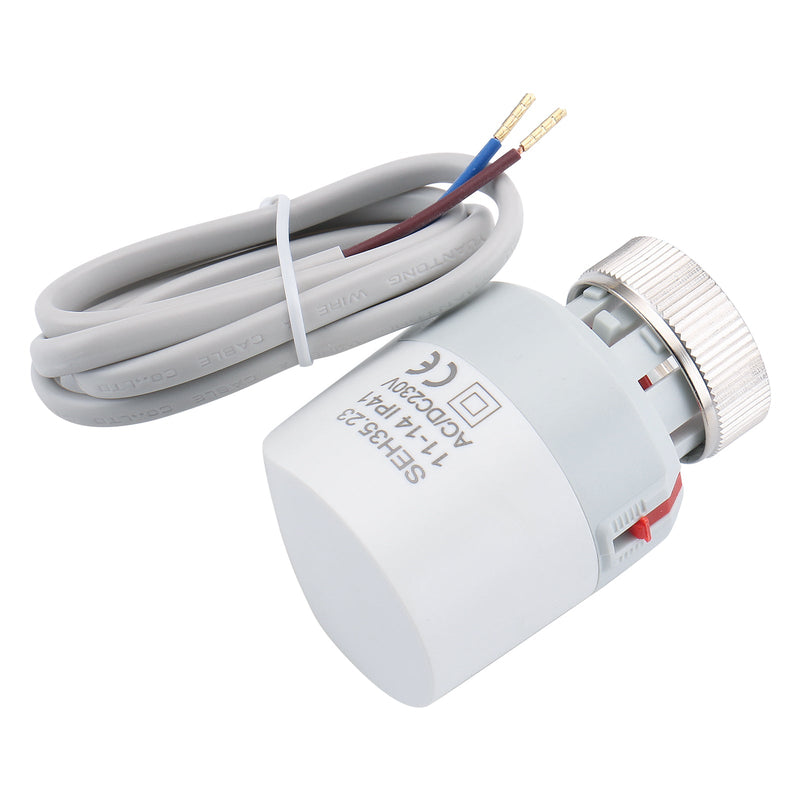

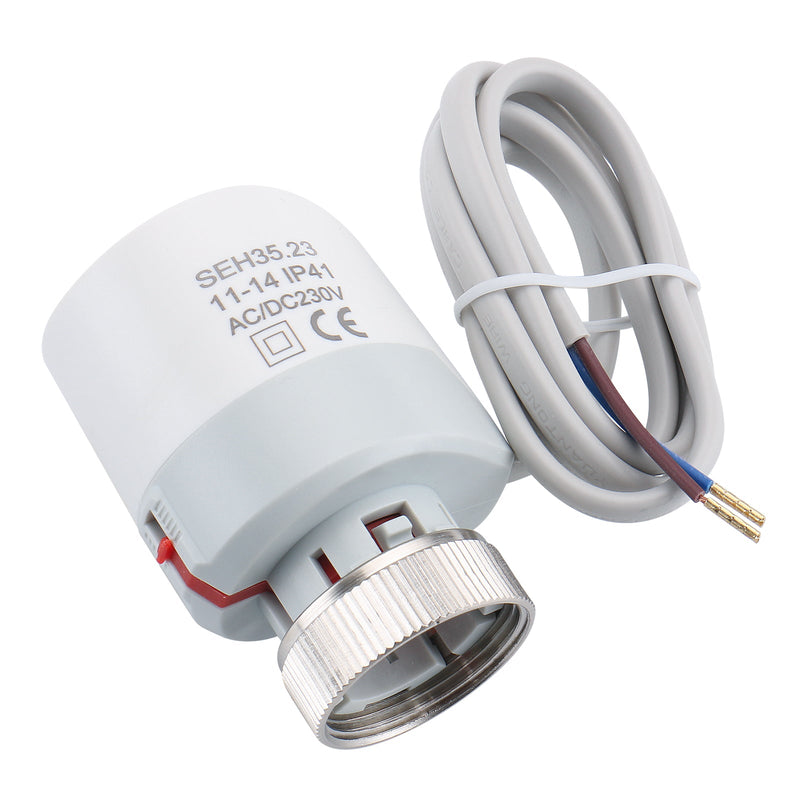

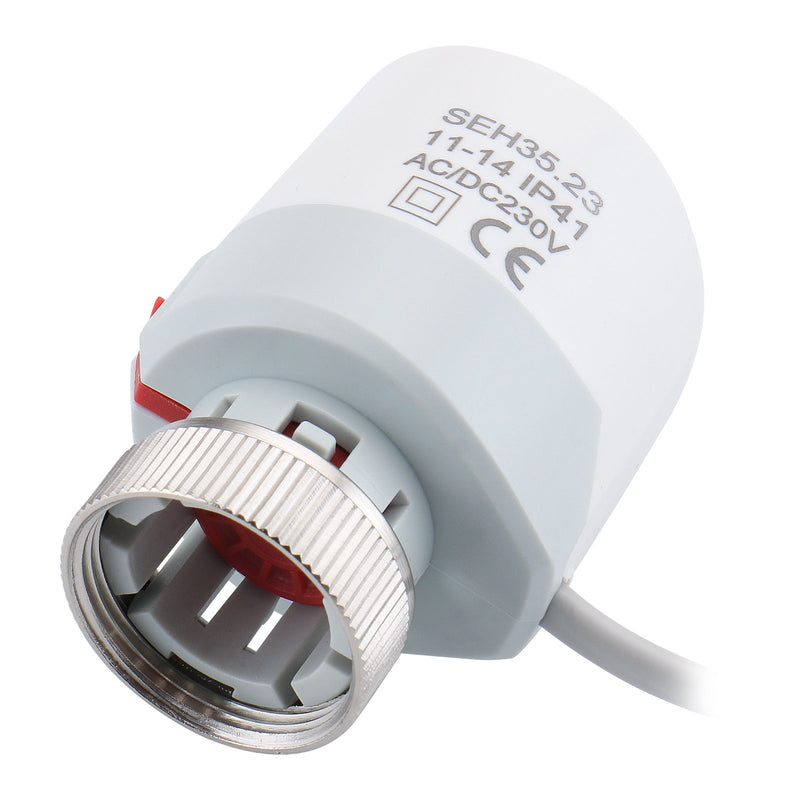

Heschen 2 Wire Thermal Actuator Valve WG03, Normaly Closed AC230V for Underfloor Heating Manifold with Itinerary

Heschen Thermoelectric Actuator is adapted to work with the central and underfloor heating system.The actuator is perfect for every household,Fits most manifolds to the M30 thread.With spring return function，Valve closed after power failure.Location indication of the trip. Simple, quick and easy to disassemble.The actuator opens and closes the valve on the underfloor manifold according to the signal required by the room thermostat or digital programmable thermostat.

•Ambient temperature:-5-50℃
•Thrust:100N
•2 Wire Normally Closed
•M30 Thread:M30x1.5mm
•Stroke Lenght:3mm
•Voltage: AC230V/DC24V
•Stable Power Comsuption:3W
•Full Time:180-300s
•Cable Length：800mm
•Shell Material:PC
•Protection Class:IP54
