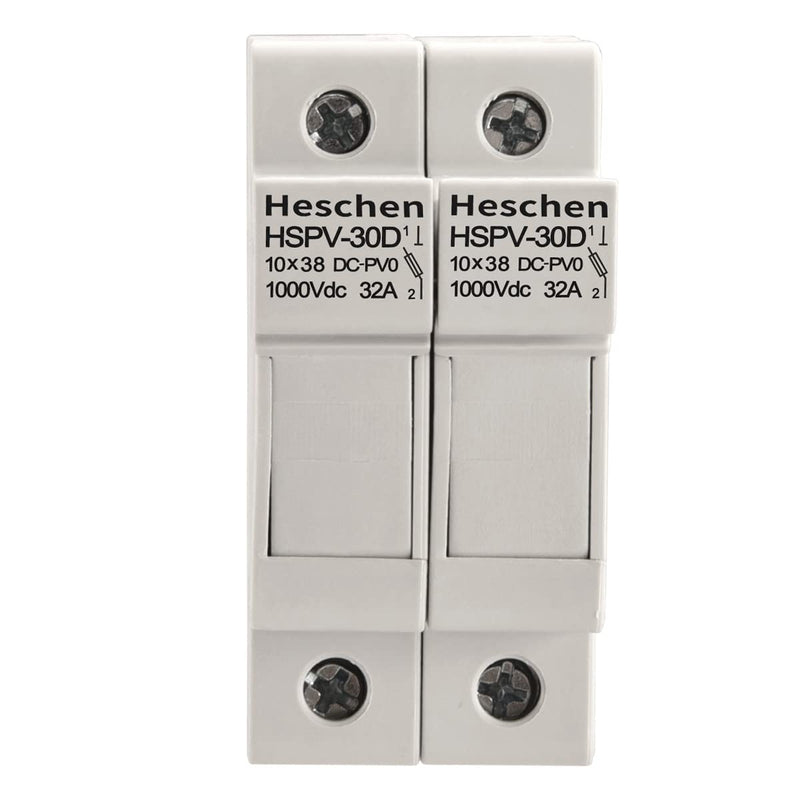

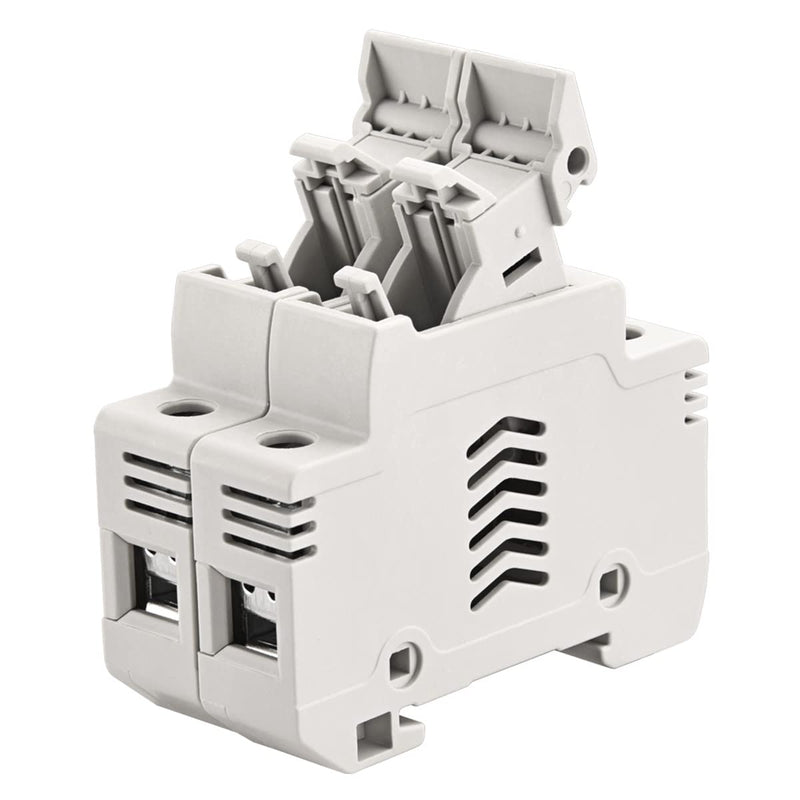

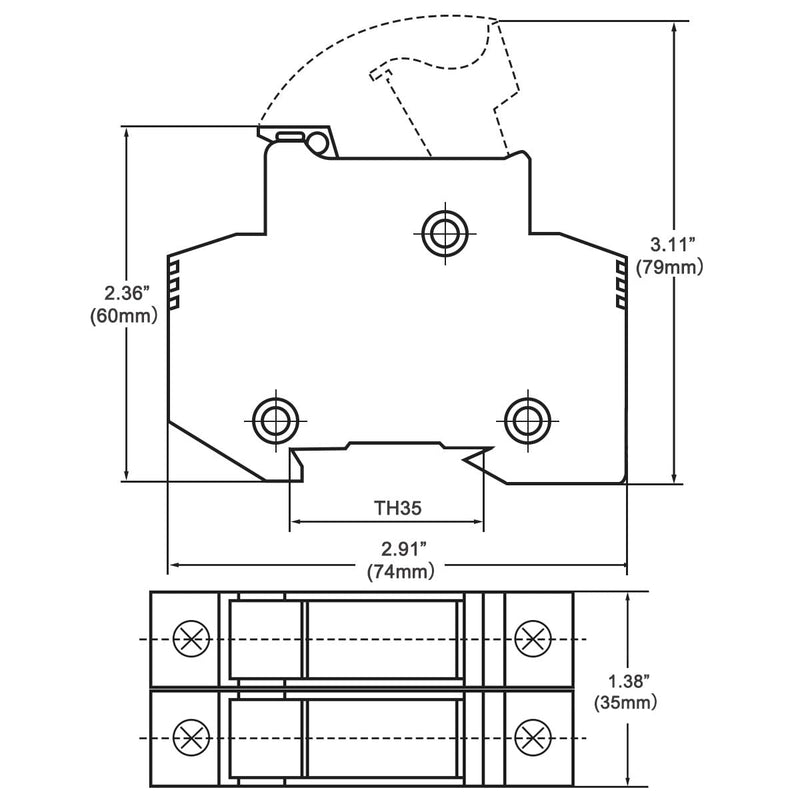

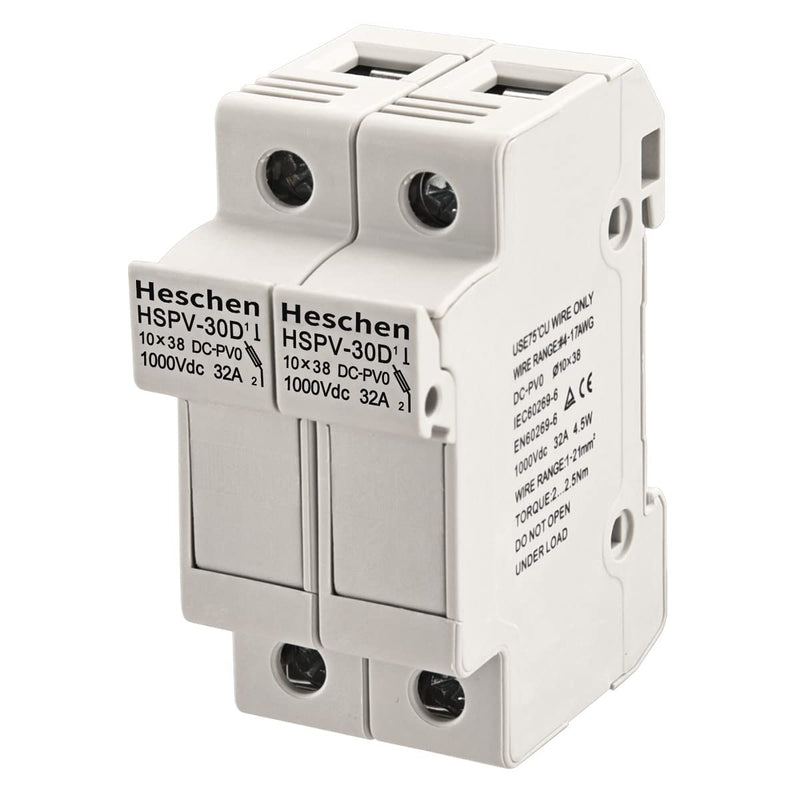

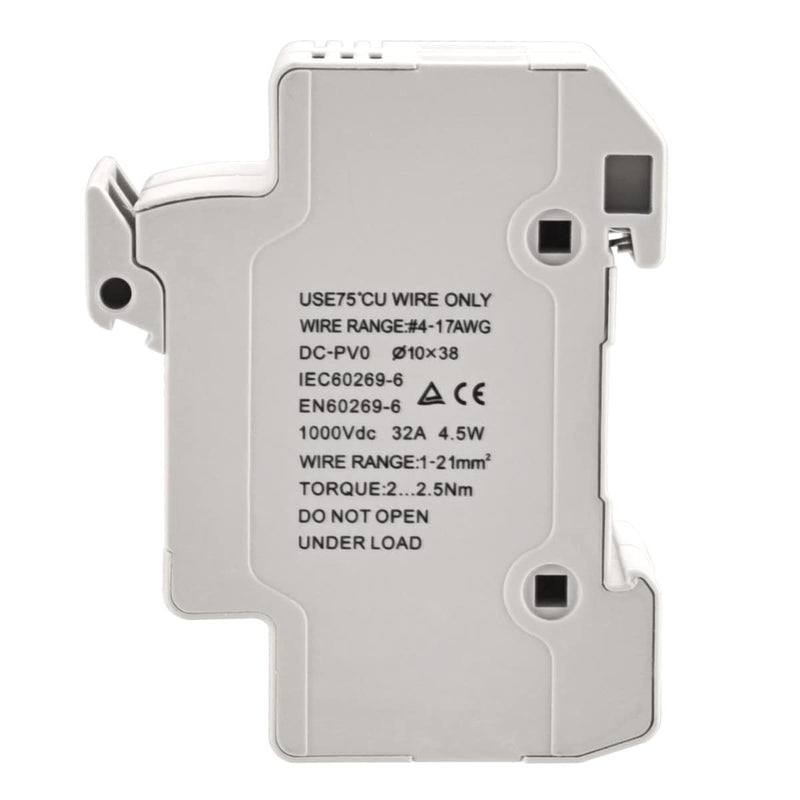

Solar/Photovoltaic Fuse Holder, PV Fuse Holder, HSPV-30D, DC1000V 32A, 2 Pole, 35mm DIN Rail Mounting, for HSPV-30 ST-10PV 10 * 38mm Fuse, CE Listed

€7,19
€7,19
Tax included. Shipping calculated at checkout.

6R-1N6B-T4E2

They are capable of working under heat caused by reted current and expected short impacting current up to 10KA.It can function as a fuse disconnecting switch by multiphase combination.
  • Rated Voltage: 1000VDC;
  • Rated Current: 32A; Watts loss: 4W
  • Number of Poles: 2P
  • Fit for fuse link size: 10 x 38 mm;
  • Fit for DIN rail: 35mm/1.4"
  • Package Content : 1 x Fuse Holder
  • CE Listed
